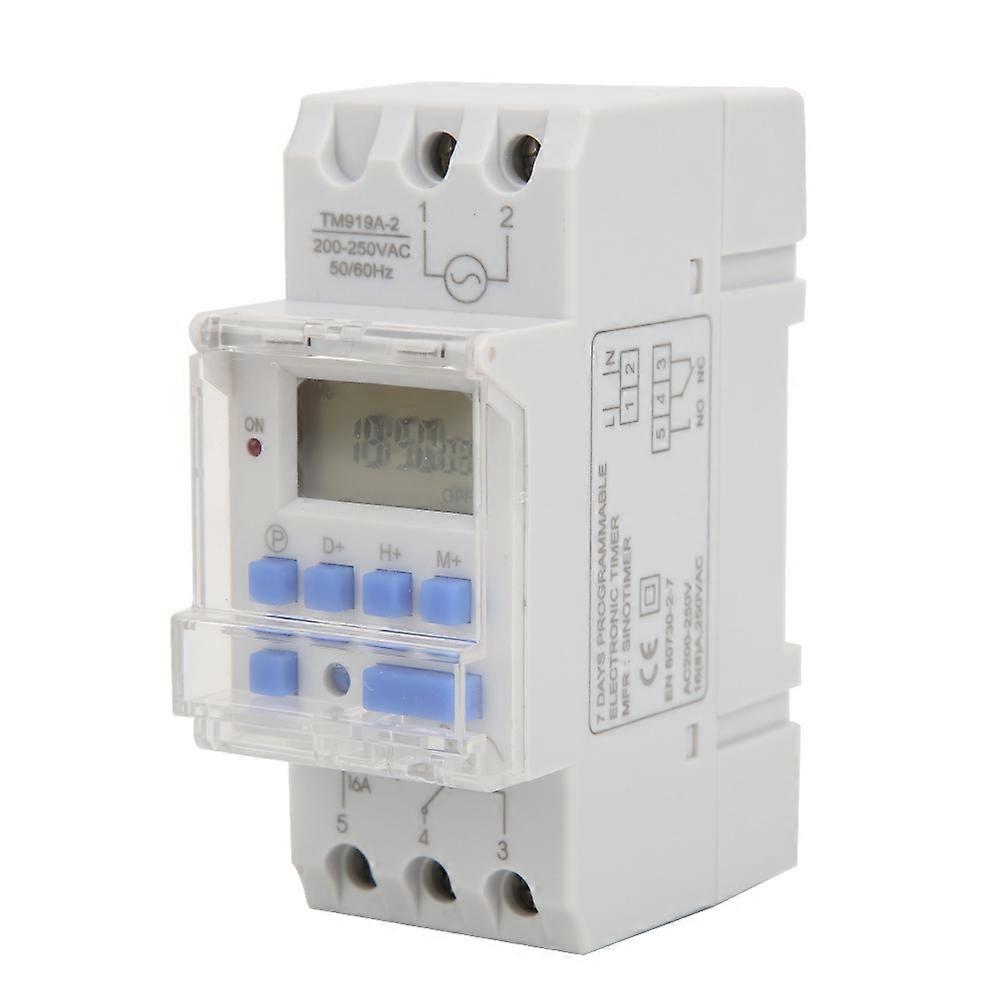

7 Day Timer Relay

7-Day Programmable Digital Timer Switch with LCD Display & Battery Backup

Enhance automation and energy efficiency with this versatile digital timer switch, designed for precise scheduling of lights, appliances, and electrical equipment. Featuring a clear LCD display, multiple programming options, and battery backup memory, it provides reliable performance for both residential and commercial applications.

Key Features

Advanced Programming

• Programmable 24 hours a day, 7 days a week.
• Supports up to 16 ON/OFF switching programs per day.
• Flexible manual programming for customized scheduling and control.

LCD Display & LED Indicator

• Easy-to-read LCD screen with LED status indicator.
• Built-in countdown timer function with a maximum setting of 24 hours.

Automatic Operation

• Automatically switches connected devices ON and OFF according to programmed schedules.
• Helps reduce energy consumption and lower electricity costs.
• Ideal for controlling lighting, pumps, fans, heaters, and other household appliances.

Flexible Scheduling Options

• Up to 16 daily ON/OFF programs.
• Supports 15 weekly scheduling combinations for greater automation flexibility.
• Helps extend the service life of connected electrical equipment by reducing unnecessary operation.

Battery Backup Memory

• Retains programmed settings during power outages for up to 90 days.
• Ensures reliable operation and protects scheduling data.
• Requires one CR2023 battery (not included).

Specifications

• Item Type: Digital Timer Switch
• Model: TM919H-2
• Material: Flame-Retardant PC
• Rated Capacity: 16A Resistive / 8A Inductive
• Power Consumption: <5VA
• Timing Range: 1 Minute to 168 Hours
• Memory Backup: Up to 90 Days
• Programming Capacity: 16 ON/OFF Cycles Per Day
• Timing Accuracy: ±2 Seconds Per Day
• Operating Temperature: -10°C to 50°C
• Operating Humidity: <95%
• Mounting Type: 35mm DIN Rail
• Battery: 1 × 3V CR2023 (Not Included)
• Dimensions: Approx. 3.5 × 6.5 × 8.7 cm (1.4 × 2.6 × 3.4 in)

Package Contents

• 1 × Digital Timer Switch
• 1 × User Manual

Notes

• Actual product color may vary slightly due to differences in monitor settings and lighting conditions.
• Dimensions are measured manually and may vary slightly.
