Commercial Wireless Vehicle Detection System e-Loop

Wireless Commercial e-Loop Exit Sensor Kit

The Wireless Commercial e-Loop Exit Sensor Kit is a robust vehicle detection system designed for commercial driveways and automated gates. It provides a reliable wireless alternative to traditional inductive loops, eliminating the need to cut or trench concrete or asphalt for cable installation.

Using advanced 3-axis magnetometer technology, the e-Loop detects approaching vehicles and wirelessly transmits the signal to the included E-Trans50 receiver from up to 50 metres away. Once a vehicle is detected, the system automatically switches to radar mode for reliable gate operation.

Built for demanding commercial environments, the sensor is housed in an ultra-durable enclosure that mounts directly to the driveway surface using the supplied DynaBolts. With an IP68 waterproof rating and the ability to withstand a static load of up to 10,000 kg, it is suitable for heavy vehicles and high-traffic access points.

The commercial e-Loop is an ideal replacement for wired inductive loops, offering faster installation, reduced labour costs, and improved long-term reliability.

Kit Includes

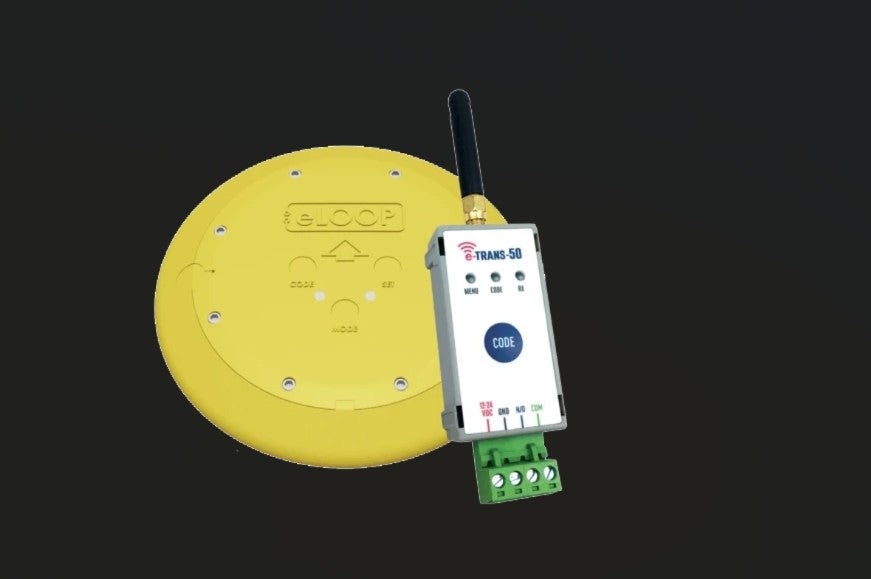

• 1 × e-Loop Wireless Detection Module
• 1 × E-Trans50 Receiver
• 2 × DynaBolts

Features

• Wireless vehicle detection with up to 50 m communication range
• Advanced 3-axis magnetometer vehicle sensing
• Automatic calibration
• Automatic switching to radar mode after vehicle detection
• Entry and exit detection modes
• Fast, surface-mounted installation with no trenching or concrete cutting
• Low power consumption
• Up to 10 years battery life*
• Compact, heavy-duty design
• Compatible with a wide range of automatic gate systems
• IP68-rated weatherproof enclosure
• Supports heavy commercial vehicle traffic

*Battery life depends on daily activations, activation duration, radar range, and environmental conditions.
